Loose lay LVT

Size: 6”x36”,7”x48”,9”x48”,12”x24”,18”x18”,9”x60”

Thickness:4.0-5.0mm

Wear layer: 0.3-0.7mm

More pictures

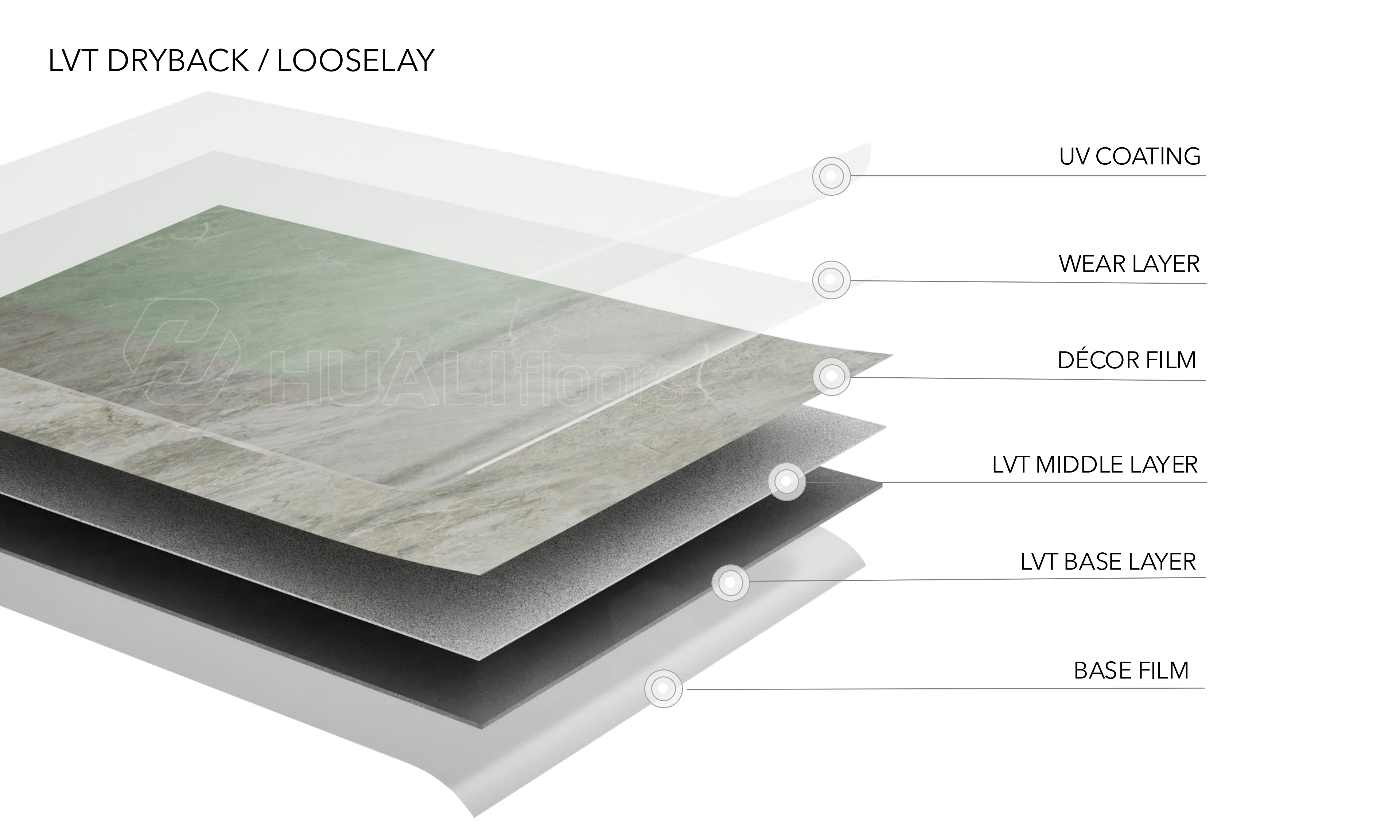

Structure diagrams
Technical data
Installation instructions

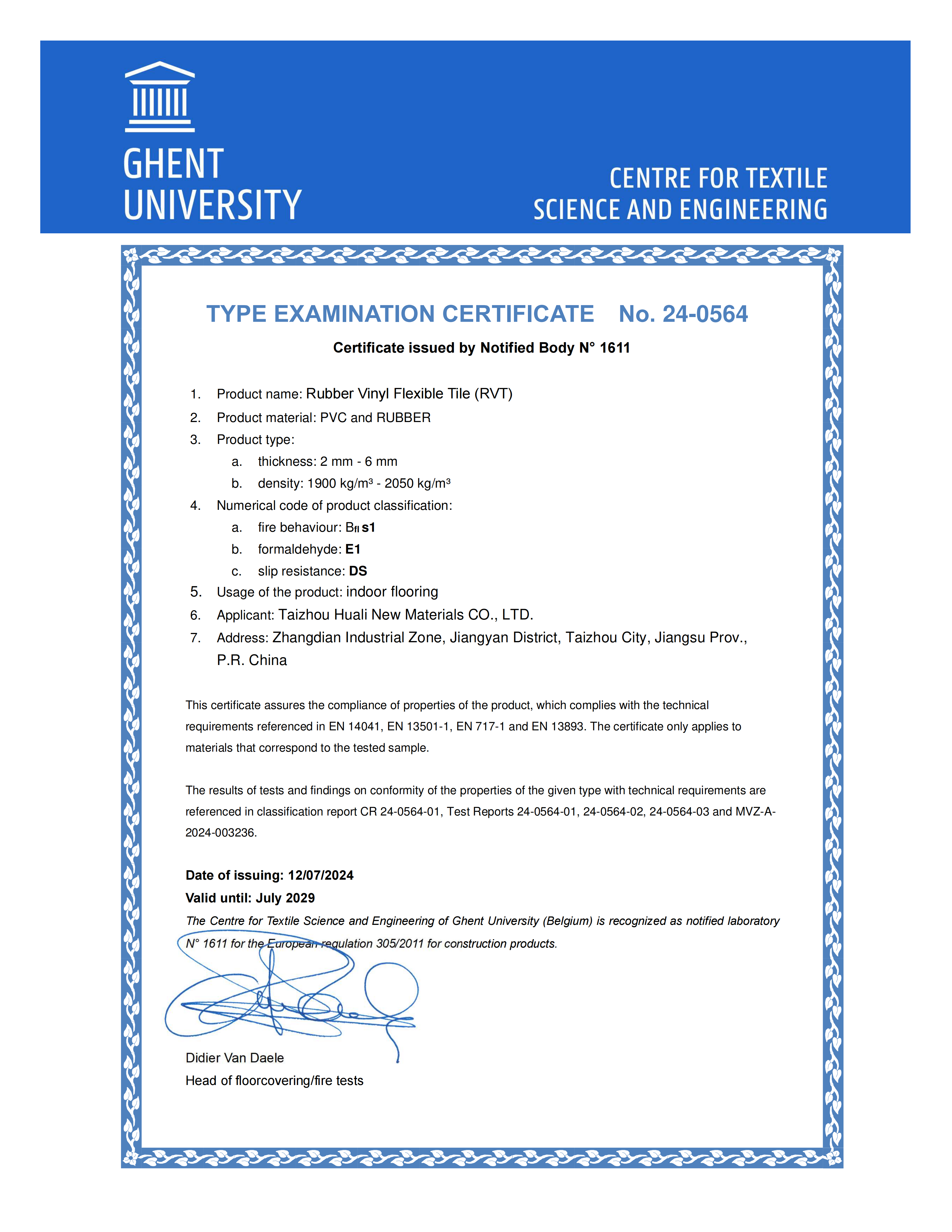

Certificate
Test report

Technical Data (Loose lay LVT)

1	Dimensions	Length	ISO24342/ASTM F2055	± 0.50 mm
		Width		± 0.20 mm
2	Overall Thickness		ISO24346 /ASTM F386	Average + 0.13 /-0.1mm
3	Squareness	Length	ISO24342/ASTM F2055	≤ 0.15 mm
		Width		≤ 0.10 mm
4	Dimensional Stability (6h - 80℃)		ISO23999/ASTM F2199	≤ 0.15 %
5	Curl (6h - 82℃)		ISO23999/ASTM F2199	± 2.0 mm
6	Flexibility		ISO24344/ASTM F137	Through the 1 inches diameter mandrel, the floor specimen has no crack or break.
7	Colour Fasteness		ISO 105 B02/ASTM F1515	≥ 6/Δ E≤8
8	Abrasion Resistance		EN660-2	Pass
9	Wear Layer Abrasion Resistance		EN 13329 (S-42, 200 cycle change)	IP≥4000cycles(0.55mm wear layer)， IP≥1800cycles(0.30mm wear layer)

10	Castor Resistance		ISO4918	No visible damage after 25000 revolutions
11	Height Difference		ISO10582/EN13329	Average ≤ 0.10 mm， Individual values ≤ 0.15 mm

12	Gloss Retention		EN 16094A	Rating 1
13	Micro-scratch Resistance		EN 16094B	≥ Rating 2
14	Resistance to Chemicals		ISO26987 / ASTM F925	Class 0 / Excellent
15	Sound Absorbtion		DIN 52210	﹤4dB
16	Impact Insulation Class		ASTM E492	IIC47
17	Sound Transmission Class		ASTM E90	STC50
18	Burning Behaviour		EN 13501-1	Bfl – s1
19	Slip Resistance		EN 13893	DS
20	Static Coefficient of Friction		ASTM D2047	Dry: 0.37 / Wet 1 : 0.69
21	Thermal Conductivity		EN 12667	0.1167 W/(m·K)
22	Thermal Resistance		EN 12667	0.0364 (m 2 ·K) /W
23	Suitable for Underfloor Heating			Yes
				28 °C MAX
24	Toxicity		EN 71	Non Toxic
25	VOC Emission		AgBB/DIBt	Certified
26	Electrical Resistance		EN 1081	Horizontal:>1,0x1016 OHM Vertical: 5,1 x1012 OHM

27	Formaldehyde emission		EN 717-1	E1
28	Antistatic Performance		EN 1815	PVC SOLE: + 3,5 KV
29	Phthalate		CPSC-CH-C1001-09.3	DBP,DEHP,BBP,DINP, DNOP, DIDP,DIBP,DnHP,DCHP≤0.1%
30	Heavy Metals		ASTM F963 CPSC-CH-E1002-08.3	Total Lead (Pb)	≤100PPm
				SOL. Lead (Pb)	≤90PPm
				SOL. Mercury (Hg)	≤60PPm
				SOL. Chromium (Cr)	≤60PPm
				SOL. Arsenic (As)	≤25PPm
				SOL. Antimony (Sb)	≤60PPm
				SOL. Barium (Ba)	≤1000PPm
				SOL. Selenium (Se)	≤500PPm
				SOL. Cadmium (Cd)	≤75PPm

11

2018-10

· LooseLay Installation Instruction

2018-10-11

Acclimatisation of Material At least 48 hours prior to installation, LooseLay must be removed from packaging (product may be stacked, but must be rested flat) and allowed to acclimatize in the room where the installation is to take place. Room temperature should be kept between 18°C - 29°C (65°F - 8…
