WPC

Size: 150x936mm; 150x1220mm; 180x1220mm;230X1220mm,305x604mm;180x1500mm; 228x1830mm

Click type: Valinge 2G, FD, 5G-C, 5G-i; I4F

Thickness:5.5-8.5mm

Wear layer: 0.15-0.7mm

Sound Insulation Pad: EVA, IXPE, Cork

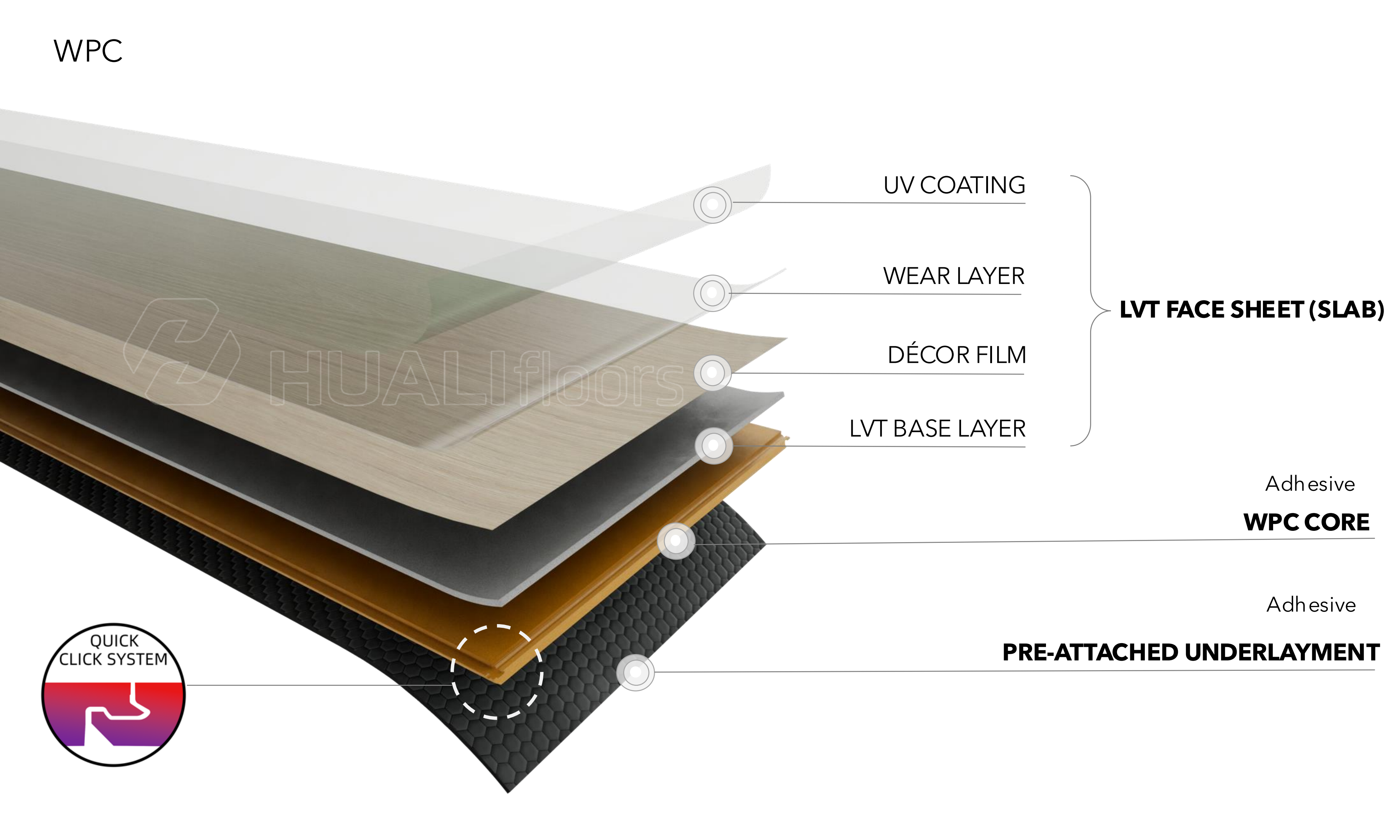

  • Structure diagrams
  • Technical data
  • Installation instructions
  • Certificate
  • Test report

Technical Data  (WPC)

1Dimensions LengthISO24342/ASTM F2055± 0.50 mm
Width± 0.20 mm
2Overall    Thickness ISO24346    /ASTM F386Average ± 0.15 mm
3SquarenessLengthISO24342/ASTM F2055≤ 0.35 mm
Width≤ 0.25 mm
4Dimensional Stability (6h - 70℃)ISO23999/ASTM F2199≤ 0.20 %
5Curl (6h - 65℃)ISO23999/ASTM F2199± 2.0 mm
6Colour Fasteness ISO 105 B02/ASTM F1515≥ 6/Δ E≤8
7Abrasion ResistanceEN660-2Pass
8Wear Layer  Abrasion ResistanceEN 13329                            (S-42, 200 cycle change)IP≥4000cycles(0.55mm    wear layer),
     IP≥1800cycles(0.30mm wear    layer)
9Castor ResistanceISO4918No visible damage after 25000 revolutions
10Opening Between Elements ISO10582/EN13329 Average ≤ 0.10 mm,
     Individual values  ≤0.15 mm
11 Height Difference ISO10582/EN13329Average ≤    0.10 mm,
     Individual values  ≤0.15 mm
12Gloss RetentionEN 16094ARating 1
13Micro-scratch ResistanceEN 16094B≥ Rating 2
14Resistance    to ChemicalsISO26987 / ASTM F925 Class 0 / Excellent
15Sound AbsorbtionDIN 52210﹤4dB
16Impact Insulation Class ASTM E492IIC47
17Sound Transmission ClassASTM E90STC50
18Burning BehaviourEN 13501-1Bfl – s1
19Slip ResistanceEN 13893DS
20Static Coefficient of FrictionASTM D2047Dry: 0.37  /  Wet 1 : 0.69
21Thermal ConductivityEN 126670.1167 W/(m·K)
22Thermal ResistanceEN 126670.0364 (m 2 ·K) /W
23Residual IndentationISO24343-1 /ASTM    F1914≤ 0.15 mm
24Suitable for Underfloor Heating Yes
28 °C MAX
25ToxicityEN 71Non Toxic
26VOC EmissionAgBB/DIBtCertified
27Electrical ResistanceEN 1081Horizontal:>1,0x1016 OHM
     Vertical: 5,1 x1012 OHM
28Formaldehyde emissionEN 717-1E1
29 Antistatic PerformanceEN 1815PVC SOLE: + 3,5 KV
30PhthalateCPSC-CH-C1001-09.3DBP,DEHP,BBP,DINP, DNOP,    DIDP,DIBP,DnHP,DCHP≤0.1%
31Heavy MetalsASTM F963                   CPSC-CH-E1002-08.3Total Lead (Pb)≤100PPm
SOL. Lead    (Pb)≤90PPm
SOL. Mercury    (Hg)≤60PPm
SOL. Chromium    (Cr)≤60PPm
SOL. Arsenic    (As)≤25PPm
SOL. Antimony    (Sb)≤60PPm
SOL. Barium    (Ba)≤1000PPm
SOL. Selenium    (Se)≤500PPm
SOL. Cadmium    (Cd)≤75PPm
  • 12

    2018-10

    · Valinge 2G+5G Click LVT-WPC-SPC Installation instruction

    2018-10-12
    Välinge DRAFT – Not for distribution – The seller of the flooring product is responsible for the installation instructions. General and Installation Instructions 2G + 5G with Bristle tongue, i.e 5G-C or 5G Original

    Video

    ×
  • 12

    2018-10

    · Valinge 2G Click LVT-WPC-SPC Installation Instruction

    2018-10-12
    Special Installation - Horizontal Cut off the locking element with a chisel,put white glue(PVAc) on the adjusted strip and push the planks horizontally together.If necessary place some spacers between last board and the wall during the hardening time of the glue.This method can also be applied to th…

    Video

    ×
  • CE Certificate for WPC

  • Certificate 9001、14001-…

  • Certificate 9001、14001-…

  • Certificate 9001、14001-…

  • Certificate 9001、14001-…

  • Floorscore for LVT-WPC-S…

  • Greenguard Gold for WPC-…

  • Greenguard Gold for WPC-…

  • click wpc 7.0mm IIC 53

  • click wpc 7.0mm STC 50

  • click wpc IXPE foam 8.5…

  • click wpc IXPE foam 8.5m…

  • click wpc with cork 8.5m…

  • click wpc with cork 8.5m…

  • click wpc with foam 8.5m…

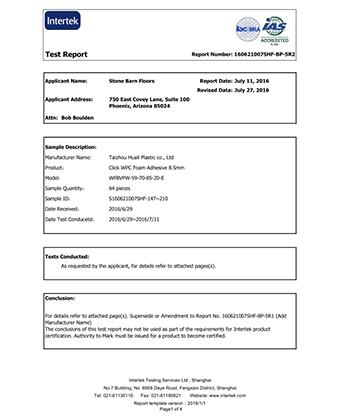

  • click wpc with foam 8.5m…

  • Formaldhyde contest test…

  • IIC ASTM E492 Test Repor…

  • Phthalate content test

  • STC ASTM E90 Test Report…

  • Test report 01- IXPE

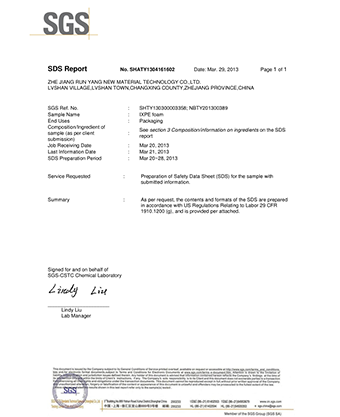

  • Test report 02-IXPE
