木塑地板

地板尺寸：150x936mm; 150x1220mm; 180x1220mm;230X1220mm,305x604mm;180x1500mm; 228x1830mm

Click type: Valinge 2G, FD, 5G-C, 5G-i; I4F

地板厚度：5.5-8.5mm

耐磨层厚度： 0.15-0.7mm

Sound Insulation Pad: EVA, IXPE, Cork

更多图片

结构图
技术资料
安装指导

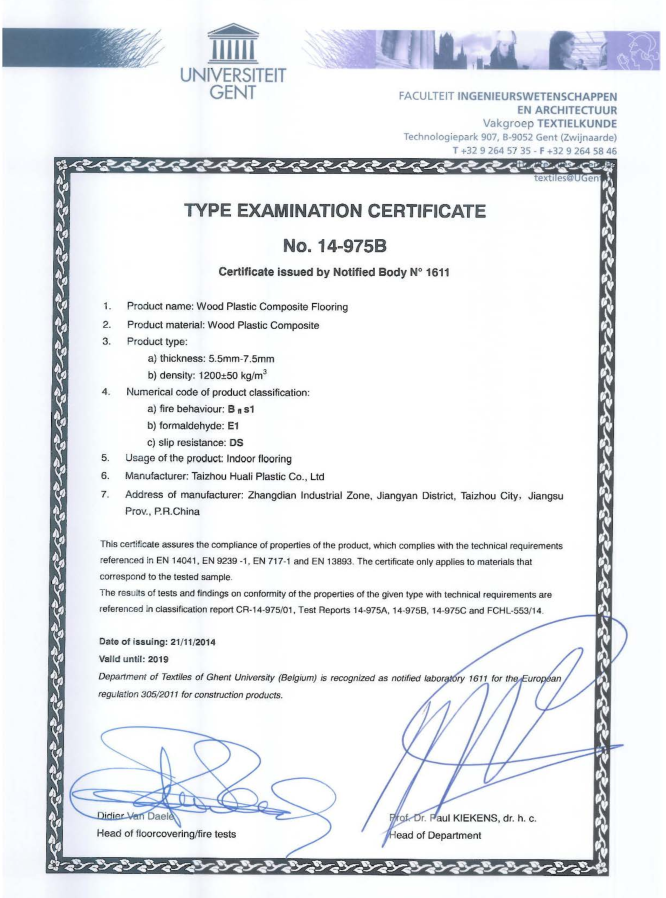

证书
测试报告

Technical Data (WPC)

1	Dimensions	Length	ISO24342/ASTM F2055	± 0.50 mm
		Width		± 0.20 mm
2	Overall Thickness		ISO24346 /ASTM F386	Average ± 0.15 mm
3	Squareness	Length	ISO24342/ASTM F2055	≤ 0.35 mm
		Width		≤ 0.25 mm
4	Dimensional Stability (6h - 70℃)		ISO23999/ASTM F2199	≤ 0.20 %
5	Curl (6h - 65℃)		ISO23999/ASTM F2199	± 2.0 mm
6	Colour Fasteness		ISO 105 B02/ASTM F1515	≥ 6/Δ E≤8
7	Abrasion Resistance		EN660-2	Pass
8	Wear Layer Abrasion Resistance		EN 13329 (S-42, 200 cycle change)	IP≥4000cycles(0.55mm wear layer)， IP≥1800cycles(0.30mm wear layer)

9	Castor Resistance		ISO4918	No visible damage after 25000 revolutions
10	Opening Between Elements		ISO10582/EN13329	Average ≤ 0.10 mm， Individual values ≤0.15 mm

11	Height Difference		ISO10582/EN13329	Average ≤ 0.10 mm， Individual values ≤0.15 mm

12	Gloss Retention		EN 16094A	Rating 1
13	Micro-scratch Resistance		EN 16094B	≥ Rating 2
14	Resistance to Chemicals		ISO26987 / ASTM F925	Class 0 / Excellent
15	Sound Absorbtion		DIN 52210	﹤4dB
16	Impact Insulation Class		ASTM E492	IIC47
17	Sound Transmission Class		ASTM E90	STC50
18	Burning Behaviour		EN 13501-1	Bfl – s1
19	Slip Resistance		EN 13893	DS
20	Static Coefficient of Friction		ASTM D2047	Dry: 0.37 / Wet 1 : 0.69
21	Thermal Conductivity		EN 12667	0.1167 W/(m·K)
22	Thermal Resistance		EN 12667	0.0364 (m 2 ·K) /W
23	Residual Indentation		ISO24343-1 /ASTM F1914	≤ 0.15 mm
24	Suitable for Underfloor Heating			Yes
				28 °C MAX
25	Toxicity		EN 71	Non Toxic
26	VOC Emission		AgBB/DIBt	Certified
27	Electrical Resistance		EN 1081	Horizontal:>1,0x1016 OHM Vertical: 5,1 x1012 OHM

28	Formaldehyde emission		EN 717-1	E1
29	Antistatic Performance		EN 1815	PVC SOLE: + 3,5 KV
30	Phthalate		CPSC-CH-C1001-09.3	DBP,DEHP,BBP,DINP, DNOP, DIDP,DIBP,DnHP,DCHP≤0.1%
31	Heavy Metals		ASTM F963 CPSC-CH-E1002-08.3	Total Lead (Pb)	≤100PPm
				SOL. Lead (Pb)	≤90PPm
				SOL. Mercury (Hg)	≤60PPm
				SOL. Chromium (Cr)	≤60PPm
				SOL. Arsenic (As)	≤25PPm
				SOL. Antimony (Sb)	≤60PPm
				SOL. Barium (Ba)	≤1000PPm
				SOL. Selenium (Se)	≤500PPm
				SOL. Cadmium (Cd)	≤75PPm
